SERVO FLEXIBLE COUPLINGSMFS-C/MFSS-C

Features:

- One-piece metallic spring coupling.



- Zero backlash.



- Complete absorption of eccentricity angularity, and end-play by spring action.



- High torsion stiffness and response.



- Identical clockwise and counter-clockwise rotational characteristics.



- Maintenance-free, oil and chemical resistant.



- Clamp type.



- MFS-C Body : Extra Super Duralumin.



- MFSS-C Body : Stainless steel.


unit:mm
Product
No
Rated
Torque
(N.m)
Max.
Torque
(N.m)
Max.Rotational
Frequency
(min-1)
Moment
of lnertia
(kg.㎡)
Error of
Angularity
(°)
Error of
Shaft End-Play
(mm)
Mass**
(g)
MFS-16C 0.3 0.6 9500 2.8 x 10-7 ±0.2 8.1
MFS-20C 0.5 1.0 7600 7.5 x 10-7 ±0.2 13.0
MFS-25C 1.1 2.2 6100 2.2 x 10-6 ±0.2 25.0
MFS-32C 2.0 4.0 4800 8.1 x 10-6 ±0.2 53.0
MFS-40C 5.0 10.0 3800 1.9 x 10-5 ±0.3 110.0
MFSS-16C 0.5 1.0

9500

7.8 x 10-7 ±0.1 21.0
MFSS-20C 1.0 2.0 7600 2.1 x 10-6 ±0.1 36.0
MFSS-25C 2.1 4.2 6100 6.3 x 10-6 ±0.2 70.0
MFSS-32C 3.5 7.0 4800 2.2 x 10-5 ±0.2 150.0
* Max. Bore Moment of Inertia
** Max. Bore Mass

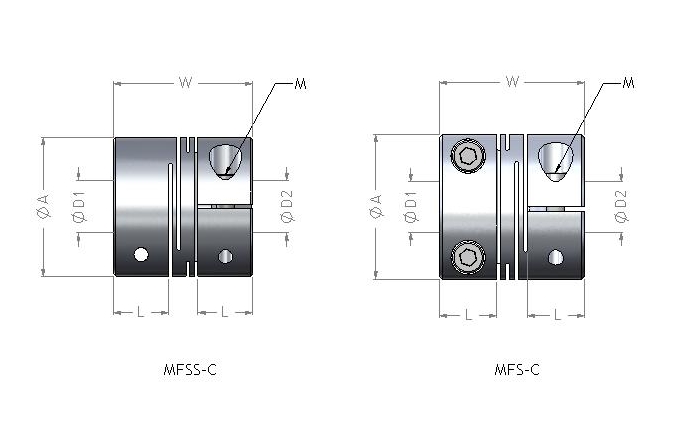

unit:mm
Product
No
A L W Stock Bores
D1 x D2 (tolerance H8)
Min D1
Stock Bores
D1 x D2 (tolerance H8)
Max D2
M
MFS-16C 16 6.8 18 5 6

4-M2.5

MFS-20C 20 7.6 20 5 8

4-M2.5

MFS-25C 25 9.5 25 5 10

4-M3

MFS-32C 32 12.6 32 8 14

4-M4

MFS-40C 40 15.8 40 8 16

4-M5

MFSS-16C 16 6.8 18 5 6

2-M2.5

MFSS-20C 20 7.6 20 5 8

2-M2.5

MFSS-25C 25 9.5 25 5 10

2-M3

MFSS-32C 32 12.6 32 8 14

2-M4
