SERVO FLEXIBLE COUPLINGSMTC

Features:

- High Torque, Vibration Absorption, Press Fitted Sleeve.



- Extremely high torsional stiffness, low inertia and excellent response.



- Vibration absorption angular misalignments and shaft end-play by spring action.



- Excellent electrical insulation.



- Identical clockwise and counter-clockwise rotational characteristics.



- Finished products featuring two different end bore diameters available in stock.



- Setscrew type.



- MTC Body : Aluminum alloy.


Unit:mm
Product
No
Rated
Torque
(N.m)
Max.
Torque
(N.m)
Max.Rotational
Frequency
(min-1)
Moment
of lnertia
(kg.㎡)
Error of
Eeccentricity
(mm)
Error of
Angularity
(°)
Error of
Shaft End-Play
(mm)
Mass**
(g)
MTC-20-RD 5.0 10.0 19000

1.0 x 10-6

0.10 ±0.8

18.0

MTC-30-RD 12.5 25.0 13000 5.9 x 10-6 0.10 ±1.0

46.0

MTC-40-RD 17.0 34.0 9600 4.0 x 10-5 0.10 ±1.2

150.0

MTC-55-RD 60.0 120.0 7000 1.7 x 10-4 0.10 ±1.4

350.0

MTC-65-RD 160.0 320.0 5900 3.9 x 10-4 0.10 ±1.5

570.0

* Max. Bore Moment of Inertia
** Max. Bore Mass

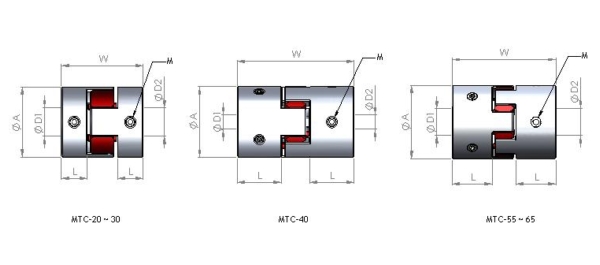

Unit:mm
Product
No
A L W Stock Bores
D1 x D2 (tolerance H8)
Min D1
Stock Bores
D1 x D2 (tolerance H8)
Max D2
M
MTC-20-RD 20 10 30 4 8

4-M3

MTC-30-RD 30 11 35 6 14

4-M4

MTC-40-RD 40 25 66 8 20

4-M5

MTC-55-RD 55 30 78 10 25

4-M6

MTC-65-RD 65 35 90 12 35

4-M8
