SERVO FLEXIBLE COUPLINGSMRC-C

Features:

- Ideal one-body metallic spring flexible couplings.



- High torsion stiffness and response.



- Identical clockwise and counter-clockwise rotational characteristics.



- Maintenance-free oil and chemical resistant.



- Clamp type.



- MRC-C Body : Aluminum alloy.



- MRCS-C Body : Stainless steel.


Unit:mm
Product
No
Rated
Torque
(N.m)
Max.
Torque
(N.m)
Max.Rotational
Frequency
(min-1)
Moment
of lnertia
(kg.㎡)
Mass**
(g)
MRC-16C 0.3 0.6 9500 2.7 x 10-7 9.0
MRC-20C 0.5 1.0 7600 7.9 x 10-7 15.0
MRC-25C 1.1 2.2 6100 2.5 x 10-6 30.0
MRC-32C 2.0 4.0 4800 7.8 x 10-6 65.0
MRCS-16C 0.5 1.0 9500 7.5 x 10-7 18.0
MRCS-20C 1.0 2.0 7600 2.2 x 10-6 37.0
MRCS-25C 2.1 4.2 6100 6.9 x 10-6 75.0

MRCS-32C

3.5 7.0 4800 2.4 x 10-5 162.0
* Max. Bore Moment of Inertia
** Max. Bore Mass

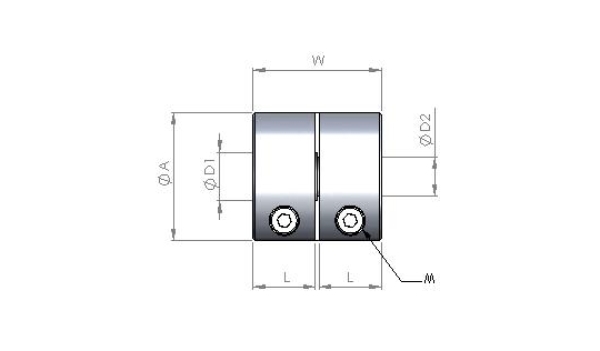

Unit:mm
Product
No
A L W Stock Bores
D1 x D2 (tolerance H8)
Min D1
Stock Bores
D1 x D2 (tolerance H8)
Max D2
M
MRC-16C 16 7.5 16 5 6

2-M2.5

MRC-20C 20 9.5 20 6 8

2-M2.5

MRC-25C 25 12 25 8 10

2-M3

MRC-32C 32 15.5 32 10 14

2-M4

MRCS-16C 16 7.5 16 5 6

2-M2.5

MRCS-20C 20 9.5 20 6 8

2-M2.5

MRCS-25C 25 12 25 8 10

2-M3

MRCS-32C

32 15.5 32 10 14

2-M4
