Features: - All steel flexible couplings.
- High rigidity high torque.
- Low moment of inertia backlash-free.
- Suitable to middling large servo system exact transmission.
- Compensating of axial radial and angular shaft misalignments.
- Long service life maintenance-free.
- Clamp type / Setscrew type.
- WTM-type Body : S45c alloy. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Error of Shaft End-Play(mm) |
| WTM-01C/CK/K | 30 | 60 | 11000 | 1.7 x 10-4 | 0.15 | 1° | ±0.6 |
| WTM-03C/CK/K | 40 | 80 | 10700 | 2.7 x 10-4 | 0.15 | 1° | ±0.6 |
| WTM-05C/CK/K | 95 | 190 | 9300 | 5.5 x 10-4 | 0.20 | 1° | ±0.8 |
| WTM-10C/CK/K | 140 | 280 | 8400 | 9.7 x 10-4 | 0.20 | 1° | ±1.0 |
| WTM-20C/CK/K | 225 | 450 | 6700 | 3.0 x 10-3 | 0.3 | 1° | ±1.2 |
| WTM-40C/CK/K | 400 | 800 | 5900 | 5.3 x 10-3 | 0.4 | 1° | ±1.4 |
| Unit:mm |

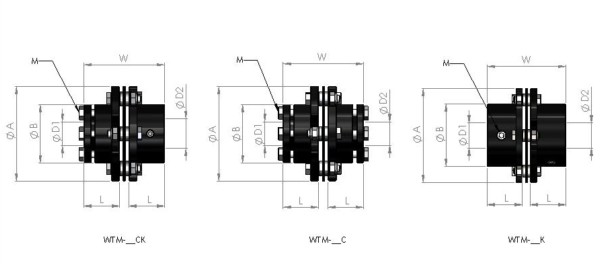

| Product No | A | B | L | W | K | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| WTM-01C/CK | 70 | 43 | 30 | 68 | 6 | 12 | 22 | 4-M6 |
| WTM-03C/CK | 80 | 49.5 | 30 | 68 | 6 | 15 | 25 | 6-M6 |
| WTM-05C/CK | 92 | 62 | 35 | 78 | 6 | 19 | 35 | 6-M6 |
| WTM-10C/CK | 102 | 70 | 40 | 88 | 6 | 22 | 45 | 6-M6 |
| WTM-20C/CK | 128 | 85 | 48 | 107 | 8 | 35 | 55 | 6-M8 |
| WTM-40C/CK | 145 | 100 | 65 | 141 | 8 | 40 | 65 | 8-M8 |
| WTM-01K | 70 | 43 | 30 | 68 | - | 12 | 22 | 4-M6 |
| WTM-03K | 80 | 49.5 | 30 | 68 | - | 15 | 25 | 4-M8 |
| WTM-05K | 92 | 62 | 35 | 78 | - | 19 | 35 | 4-M8 |
| WTM-10K | 102 | 70 | 40 | 88 | - | 22 | 45 | 4-M10 |
| WTM-20K | 128 | 85 | 48 | 107 | - | 35 | 55 | 4-M12 |
| WTM-40K | 145 | 100 | 65 | 141 | - | 40 | 65 | 4-M12 |
