CLAMPING POWER LOCKSGSD

Features:

- Self-centering.



- Clamping element for universal use.



- Wide range of applications.



- Low-cost solution to high toques in average.



- Please see our mounting instructions the internet.



- GSD Body:AISI 1045 Alloy.


unit:mm
Product No Drive Torque
Screw
TS (N.m)
Transmissible
Torque
T (N.m)
Thrust Force
F (KN)
Contact Pressure
on Hub Surface
P (N/m㎡)
Weight
kg
GSD-20 17 550 55 100 0.37
GSD-22 17 600 55 100 0.37
GSD-24 17 660 55 100 0.40
GSD-25 17 680 55 100 0.40
GSD-28 17 720 55 100 0.44
GSD-30 17 820 55 100 0.53
GSD-32 17 1400 80 130 0.52
GSD-35 17 1400 80 130 0.50
GSD-38 17 1600 80 130 0.60
GSD-40 17 1600 110 130 0.58
GSD-42 41 2500 110 130 1.00
GSD-45 41 2500 150 130 0.97
GSD-48 41 3700 150 170 1.08
GSD-50 41 3700 150 170 1.05
GSD-55 41 4100 150 160 1.14
GSD-60 41 4500 160 160 1.18
GSD-65 41 4500 160 150 1.26
GSD-70 83 8400 240 150 2.25
GSD-75 83 8400 240 140 2.43
GSD-80 83 9600 250 140 2.60
GSD-85 83 11000 250 150 2.70
GSD-90 83 13000

300

150 2.80
GSD-95 83 13000 300 150 3.00
GSD-100 145 17500 350 150 4.10
GSD-110 145 20000 300 150 4.40
GSD-120 145 21300 330 150 4.80
GSD-130 145 28000 350 150 5.70
GSD-140 190 30400 350 150 6.20
GSD-150 190 39000 400 160 7.10
GSD-160 190 41700 400 170 8.00
GSD-170 190 52000 460 160 11.00
GSD-180 190 55000 460 170 12.10

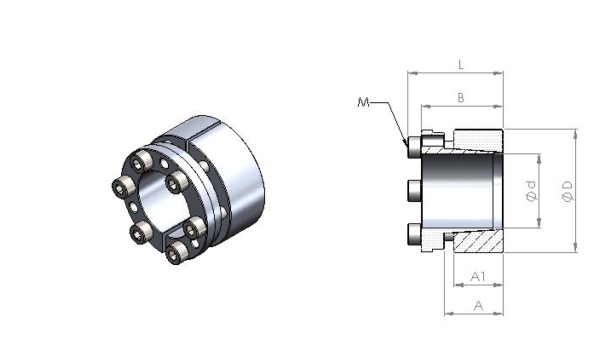

unit:mm
Product No d
(mm)
D
(mm)
A
(mm)
A1
(mm)
B
(mm)
L
(mm)
M
(mm)
GSD-20 20 47 31 26 42 48 M6
GSD-22 22 47 31 26 42 48 M6
GSD-24 24 50 31 26 42 48 M6
GSD-25 25 50 31 26 42 48 M6
GSD-28 28 55 31 26 42 48 M6
GSD-30 30 55 31 26 42 48 M6
GSD-32 32 60 31 26 42 48 M6
GSD-35 35 60 31 26 42 48 M6
GSD-38 38 65 31 26 42 48 M6
GSD-40 40 65 31 26 42 48 M6
GSD-42 42 75 36 30 50 58 M8
GSD-45 45 75 36 30 50 58 M8
GSD-48 48 80 36 30 50 58 M8
GSD-50 50 80 36 30 50 58 M8
GSD-55 55 85 36 30 50 58 M8
GSD-60 60 90 36 30 50 58 M8
GSD-65 65 95 36 30 50 58 M8
GSD-70 70 110 46 39 60 70 M10
GSD-75 75 115 46 39 60 70 M10
GSD-80 80 120 46 39 60 70 M10
GSD-85 85 125 46 39 60 70 M10
GSD-90 90 130 46 39 60 70 M10
GSD-95 95 135 46 39 60 70 M10
GSD-100 100 145 52 46 68 80 M12
GSD-110 110 155 52 46 68 80 M12
GSD-120 120 165 52 46 68 80 M12
GSD-130 130 180 52 46 68 80 M12
GSD-140 140 190 58.5 51 76 90 M14
GSD-150 150 200 58.5 51 76 90 M14
GSD-160 160 210 58.5 51 76 90 M14
GSD-170 170 225 58.5 51 76 90 M14
GSD-180 180 235 58.5 51 76 90 M14
