SERVO FLEXIBLE COUPLINGSMFR

Features:

- Slippage between hub and spacer enables high allows high parallel and angular

  misalignments.



- Minimized load on shaf caused by misalignments.



- Simple configuration enables easy assembly.



- Excellent electrical insulation.



- Operational temperature:-20℃〜80℃.



- Finished products featuring two different end bore diameters available in stock.



- Setscrew type.



- MFR Body : Aluminum alloy.


Unit:mm
Product
No
Rated
Torque
(N.m)
Max.
Torque
(N.m)
Max.Rotational
Frequency
(min-1)
Moment
of lnertia
(kg.㎡)
Error of
Eeccentricity
(mm)
Error of
Angularity
(°)
Mass**
(g)
MFR-44

15.0

30.0

12000 3.8 x 10-5 1.0 126.0

MFR-55

22.5

45.0

10000 1.2 x 10-4 1.5 262.0
MFR-70

40.0

80.0

8000 4.0 x 10-4 1.0 502.0
* Max. Bore Moment of Inertia
** Max. Bore Mass

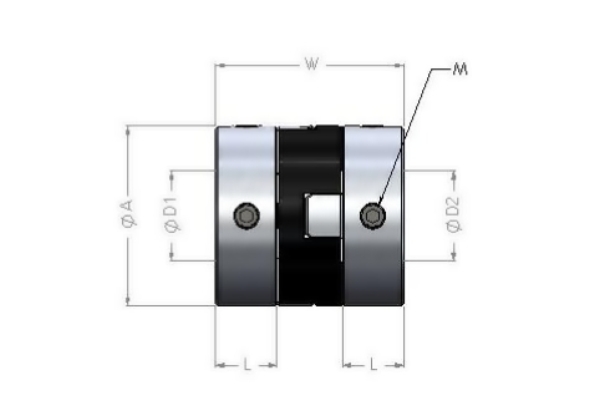

Unit:mm
Product
No
A L W Stock Bores
D1 x D2 (tolerance H8)
Min D1
Stock Bores
D1 x D2 (tolerance H8)
Max D2
M
MFR-44 44 15 46 14 22 4-M6
MFR-55 55 19 57 18 26 4-M8
MFR-70 70 25 77 22 38 4-M10
