Features: - Slippage between hub and spacer enables high allows high parallel and angular misalignments.
- Minimized load on shaf caused by misalignments.
- Simple configuration enables easy assembly.
- Excellent electrical insulation.
- Operational temperature：-20℃〜80℃.
- Finished products featuring two different end bore diameters available in stock.
- Clamp type.
- MFR-C Body : Aluminum alloy. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Mass**(g) |
| MFR-44C | 13.0 | 26.0 | 12000 | 3.7 x 10-5 | 1.0 | 2° | 129.0 |
| MFR-55C | 20.0 | 40.0 | 10000 | 1.1 x 10-4 | 1.5 | 2° | 250.0 |
| MFR-70C | 36.0 | 72.0 | 8000 | 3.9 x 10-4 | 2.0 | 2° | 512.0 |
| Unit:mm |

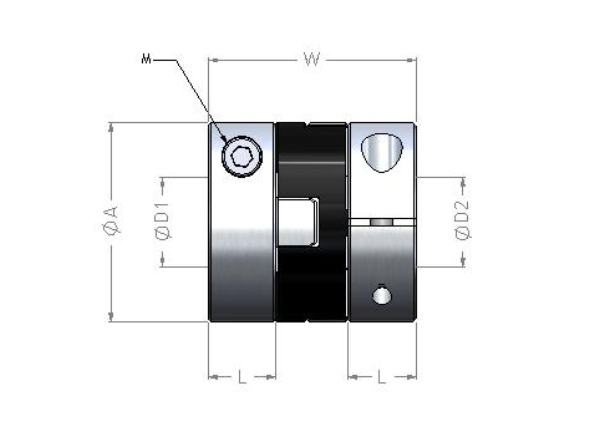

| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| MFR-44C | 44 | 15 | 46 | 14 | 20 | 2-M5 |
| MFR-55C | 55 | 19 | 57 | 18 | 25 | 2-M6 |
MFR-70C | 70 | 25 | 77 | 22 | 35 | 2-M8 |
