MOTOR XXY TABLETRX-400A

Features:

Slim platrorm with rigid structure is adopted. One piece unit with motor control connection; Module structures, which are right angle lonear bearing, roller linear bearing and ball screw, are installed between base plate and platform corners. Features listed below:



- Fit to large workpiece

    By combination of many sets, large size of workpiece is also available.



- Super slim、light weight and stable

    XYθ mechanism adopted, mechanism can be light and stable.



- Hollow structure

     There is more space at oenter of platform and base where optical device can be installed.



- Load unit

    Patented Load unit is adopted at center to take load, which realizes heavy load with  tiny

     mechanism.



- High rigidity、High precision

    Preloaded Crossed type roller Bearing and high precise ball screw sustain high precision

    and high rigidity of mechanism.


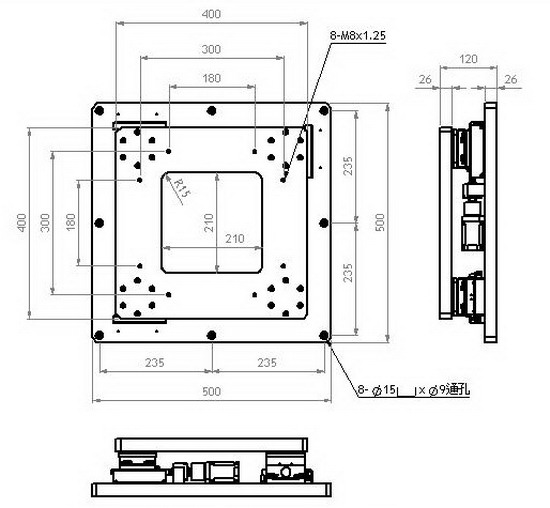

Mechanical type

Product No Table Size
( mm )
Stroke
( mm )
Dynamic Load
( kgf )
Static Load
( kgf )
Repeated Stability
( μm )
Parallel Precision
( μm )
Ball screw pitch
( mm )
Mass
( kg )
Material Surface treatment
TRX-400A-C1 400 × 400 ±10 × ±10 × 2.5° 50 100 ± 1 50 2 39 Aluminum alloy Black anodized
TRX-400A-C5 400 × 400 ±10 × ±10 × 2.5° 50 100 ± 5 50 2 39 Aluminum alloy Black anodized

Device type

Motor Type Angle / Step
( ° )
Rated Voltage
( V )
Rated Current
( A )
Holding Torque
( kgf.cm )
Sensor Voltage
( V )
42H5K-2A 1.8 4 2 7 24

Dirver type Resolution
( PPS/REV )
Current
( A )
Input Voltage
( DC V )

Response Frequency
( KPPS )

Connector
DA-2D33B 51200 0.4 ~ 3.2 24 ~ 36 1000 12 pin metal male connector
