Features: - High Torque, Vibration Absorption, Press Fitted Sleeve.
- Extremely high torsional stiffness, low inertia and excellent response.
- Vibration absorption angular misalignments and shaft end-play by spring action.
- Excellent electrical insulation.
- Identical clockwise and counter-clockwise rotational characteristics.
- Finished products featuring two different and bore diameters available in stock.
- Clamp type.
- MTC-C Body : Aluminum alloy. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Error of Shaft End-Play(mm) | Mass**(g) |
| MTC-20C-RD | 5.0 | 10.0 | 7600 | 1.1 x 10-6 | 0.10 | 1° | ±0.8 | 19.0 |
| MTC-30C-RD | 12.5 | 25.0 | 5100 | 6.2 x 10-6 | 0.10 | 1° | ±1.0 | 50.0 |
| MTC-40C-RD-50 | 17.0 | 34.0 | 3800 | 3.0 x 10-5 | 0.10 | 1° | ±1.2 | 125.0 |
| MTC-40C-RD | 17.0 | 34.0 | 3800 | 3.9 x 10-5 | 0.10 | 1° | ±1.2 | 160.0 |
| MTC-55C-RD-66 | 60.0 | 120.0 | 2800 | 1.35 x 10-4 | 0.10 | 1° | ±1.4 | 295.0 |
| MTC-55C-RD | 60.0 | 120.0 | 2800 | 1.6 x 10-4 | 0.10 | 1° | ±1.4 | 330.0 |
| MTC-65C-RD | 160.0 | 320.0 | 2350 | 3.8 x 10-4 | 0.10 | 1° | ±1.5 | 560.0 |
| Unit:mm |

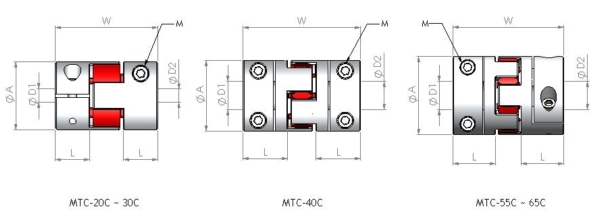

| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| MTC-20C-RD | 20 | 10 | 30 | 5 | 8 | 2-M2.5 |
| MTC-30C-RD | 30 | 11 | 35 | 6 | 14 | 2-M4 |
| MTC-40C-RD-50 | 40 | 17 | 50 | 8 | 19 | 2-M5 |
| MTC-40C-RD | 40 | 25 | 66 | 8 | 19 | 4-M5 |
| MTC-55C-RD-66 | 55 | 24 | 66 | 10 | 25 | 4-M6 |
| MTC-55C-RD | 55 | 30 | 78 | 10 | 25 | 4-M6 |
| MTC-65C-RD | 65 | 35 | 90 | 12 | 35 | 4-M8 |
