Features: - Slippage between hub and spacer enables high allows high parallel and angular misalignments.
- Minimized load on shaf caused by misalignments.
- Simple configuration enables easy assembly.
- Excellent electrical insulation.
- Operational temperature：-20℃〜80℃.
- Finished products featuring two different end bore diameters available in stock.
- Clamp type.
- MPS-C Body : Aluminum alloy. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Eeccentricity(mm) | Error of Angularity(°) | Mass**(g) |
| MPS-16C | 0.4 | 0.8 | 9500 | 3.07 x 10-7 | 1.0 | 2° | 8.3 |
| MPS-20C | 0.7 | 1.4 | 7600 | 7.65 x 10-7 | 1.3 | 2° | 13.0 |
| MPS-25C | 1.2 | 2.4 | 6100 | 2.27 x 10-6 | 1.5 | 2° | 24.0 |
| MPS-32C | 2.8 | 5.6 | 4800 | 7.33 x 10-6 | 2.0 | 2° | 48.0 |
| Unit:mm |

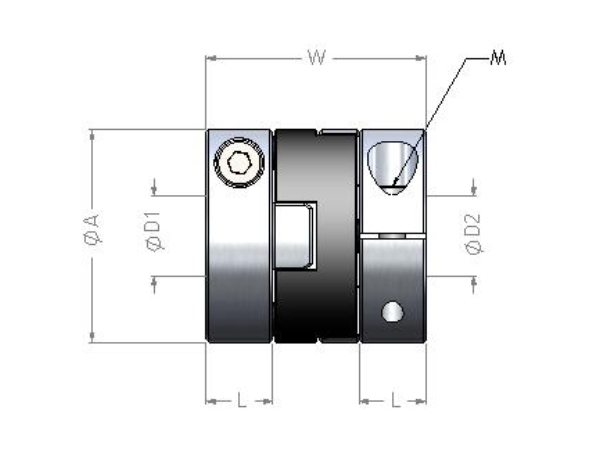

| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| MPS-16C | 16 | 7 | 21 | 4 | 6 | 2-M2.5 |
| MPS-20C | 20 | 7 | 22 | 5 | 8 | 2-M2.5 |
| MPS-25C | 25 | 8 | 27 | 6 | 10 | 2-M3 |
| MPS-32C | 32 | 10 | 33 | 8 | 14 | 2-M4 |
