Features: - Disk type flexible coupling.
- Compact design with short overall length.
- Stainless steel disks absorb angular and shaft end-play misalignments, but do not absorb parallel misalignment.
- Suitable to small servo system exact transmission.
- Low moment of inertia backlash-free.
- Finished products featuring two different end bore diameters available in stock.
- Clamp type.
- XHSA-C Body : Extra Super Duralumin. |
| Unit:mm |
| Product No | Rated Torque (N.m) | Max. Torque (N.m) | Max.Rotational Frequency(min-1) | Moment of lnertia(kg.㎡) | Error of Angularity(°) | Error of Shaft End-Play(mm) | Mass**(g) |
| XHSA-27C | 2.5 | 5.0 | 23000 | 2.9 x 10-6 | 1° | ±0.2 | 28.0 |
| XHSA-35C | 5.0 | 10.0 | 18000 | 7.9 x 10-6 | 1° | ±0.2 | 53.0 |
| XHSA-40C | 9.0 | 18.0 | 16000 | 1.9 x 10-5 | 1° | ±0.3 | 87.0 |
| XHSA-45C | 12.0 | 24.0 | 14000 | 2.7 x 10-5 | 1° | ±0.3 | 109.0 |
| XHSA-50C | 18.0 | 36.0 | 12000 | 6.6 x 10-5 | 1° | ±0.3 | 184.0 |
| XHSA-57C | 26.0 | 52.0 | 11000 | 9.7 x 10-5 | 1° | ±0.4 | 237.0 |
| XHSA-68C | 62.0 | 124.0 | 10000 | 23.7 x 10-5 | 1° | ±0.4 | 398.0 |
| Unit:mm |

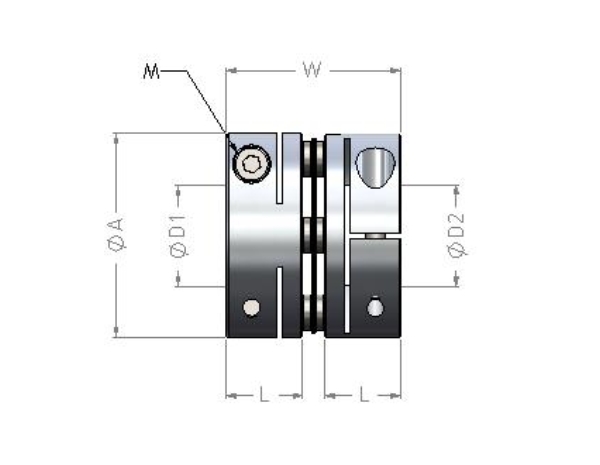

| Product No | A | L | W | Stock BoresD1 x D2 (tolerance H8)Min D1 | Stock BoresD1 x D2 (tolerance H8)Max D2 | M |
| XHSA-27C | 27 | 11 | 24.5 | 5 | 14 | 4-M3 |
| XHSA-35C | 35 | 12 | 27 | 6 | 16 | 4-M3 |
| XHSA-40C | 40 | 15 | 34 | 8 | 20 | 4-M4 |
| XHSA-45C | 45 | 15 | 34 | 8 | 22 | 4-M4 |
| XHSA-50C | 50 | 20 | 45 | 10 | 25 | 4-M5 |
| XHSA-57C | 57 | 20 | 45 | 12 | 28 | 4-M5 |
| XHSA-68C | 68 | 24 | 54 | 14 | 35 | 4-M6 |
