SERVO FLEXIBLE COUPLINGSMSA-C

Features:

- Sippage between the bush and pin allows for parallel and angular misalignments.



- Minimized backlash achieved through high precision fit of pin and bush.



- Minimized load on shaft caused by misalignments.



- Identical clockwise and counter-clockwise rotational characteristics.



- Finished products featuring two different end bore diameters available in stock.



- Clamp type.



- MSA-C Body : Aluminum alloy.


Unit:mm
Product
No
Rated
Torque
(N.m)
Max.
Torque
(N.m)
Max.Rotational
Frequency
(min-1)
Moment
of lnertia
(kg.㎡)
Error of
Eeccentricity
(mm)
Error of
Angularity
(°)
Error of
Shaft End-Play
(mm)
Mass**
(g)
MSA-25 1.2 2.4 6100 3.4 x 10-6 0.5 - 42.0
MSA-32 3.0 6.0 4800 1.1 x 10-5 0.5 - 83.0
MSA-40 6.0 12.0 3800 3.2 x 10-5 0.5 - 155.0
MSA-50 10.0 20.0 3100 9.9 x 10-5 0.5 - 306.0
* Max. Bore Moment of Inertia
** Max. Bore Mass

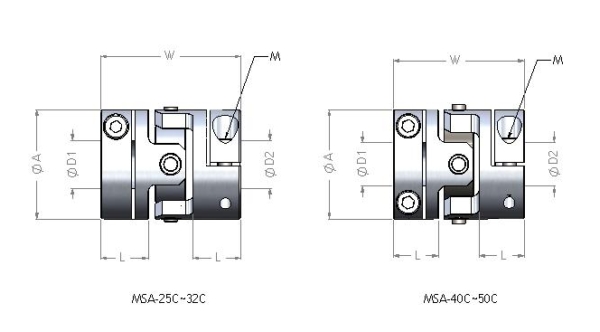

Unit:mm
Product
No
A L W Stock Bores
D1 x D2 (tolerance H8)
Min D1
Stock Bores
D1 x D2 (tolerance H8)
Max D2
M
MSA-25 25 11.5 34 6 10 4-M4
MSA-32 32 14 41 8 14 4-M4
MSA-40 40 16.5 48 10 16 4-M5
MSA-50 50 21.5 60 12 20 4-M6
